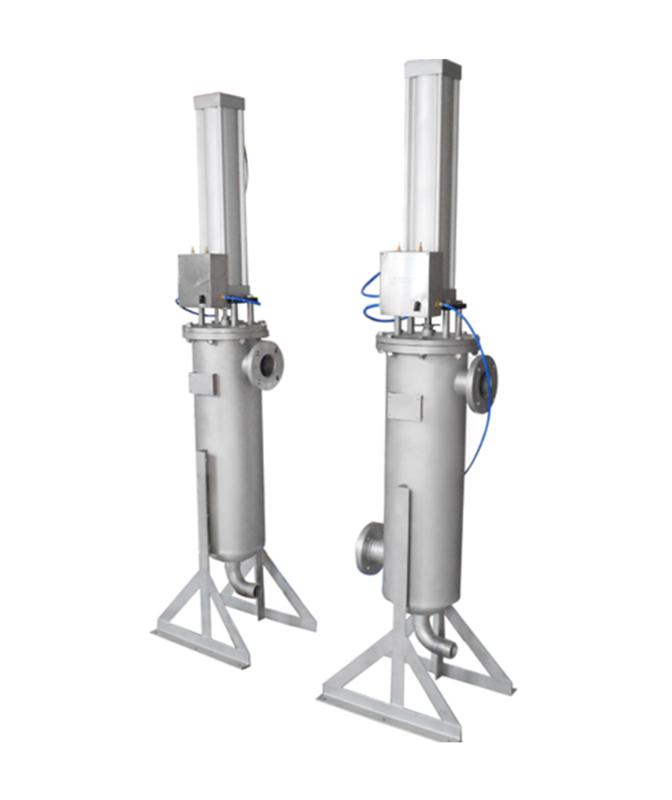

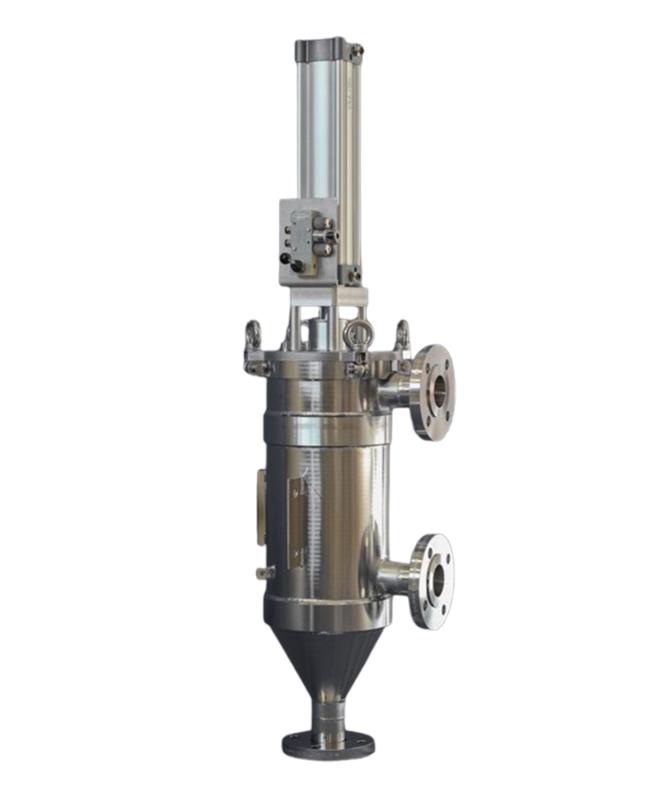

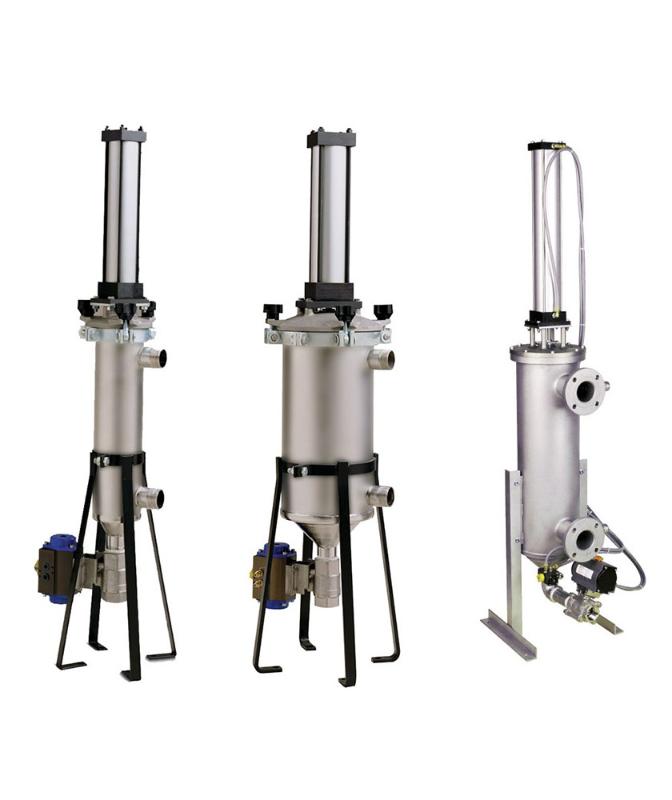

SELF-CLEANING FILTER
YGPF
The YGPF series are scraper-type self-cleaning filters, particularly suitable for filtering viscous liquids. They feature a simple structure, high safety and reliability, no consumption of disposable filter consumables, low operating costs, and support automated control.
Handles liquids with viscosity up to 800 Pa·s
Accuracy: 30-1500 μm
Vessel Pressure Rating: 10 Bar (or customized)
Design Temperature: 0-200°C
Housing Material: SS or customized
Compressed Gas Driven
OVERVIEW
SPECIFICATIONS
Handles liquids with viscosity up to 800 Pa·s
Accuracy: 30-1500 μm
Vessel Pressure Rating: 10 Bar (or customized)
Core Features

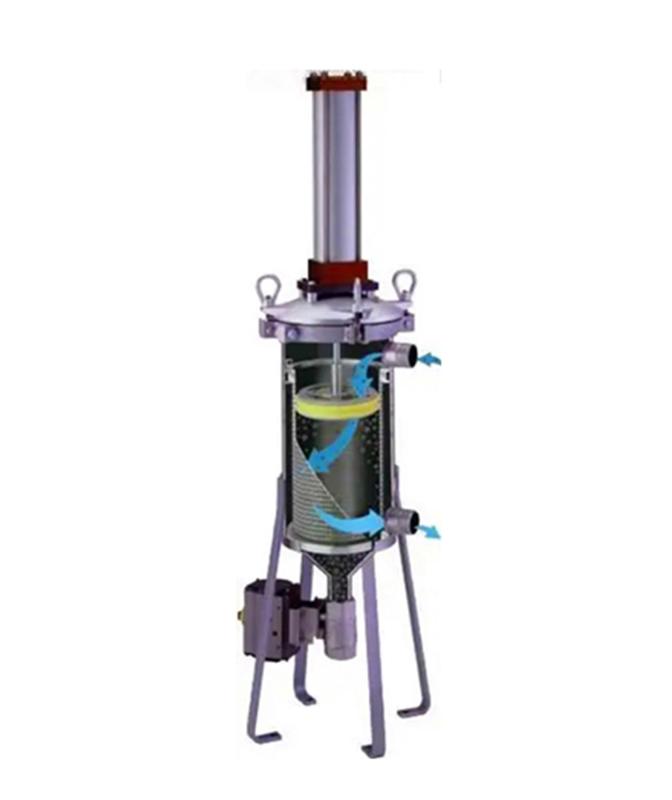

Reciprocating scraper for cake removal, ideal for viscous liquids
Simple structure with easy disassembly of scraper and filter elements
Fully automatic operation with continuous online filtration
No disposable filter media consumption, low operating costs
Low filtration pressure loss, stable flow rate
Closed filtration system suitable for various working conditions
High-concentration waste discharge with recoverable materials to minimize loss
Applications
Wax
Kerosene
Syrup
Latex
Resin
Steroids
