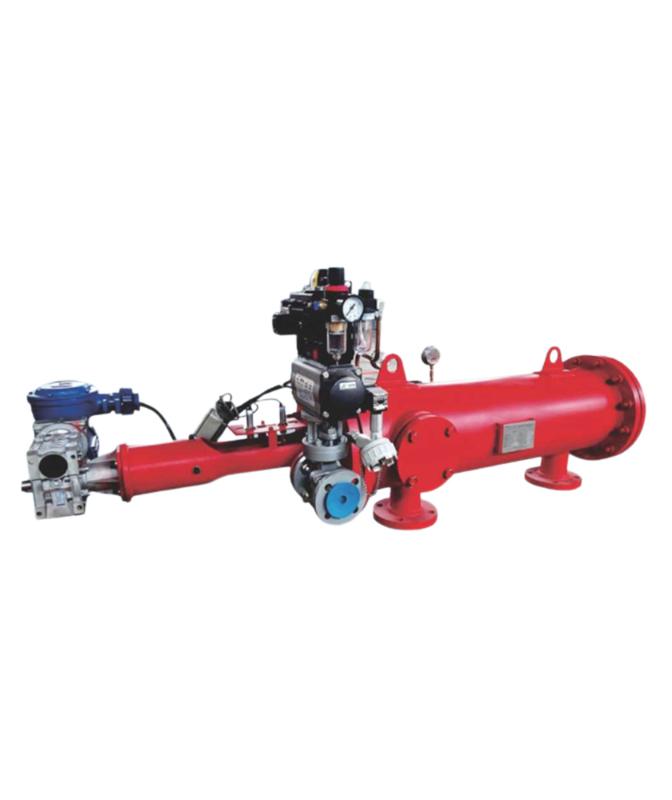

SELF-CLEANING FILTER
CKGF
The CKGF series are suction backwash filters with compact design and high flow rate. They effectively intercept large particles and feature electric suction cleaning on demand or by timer. No disposable consumables, low operating costs.
Flow Rate: 20-2500 m³/h
Filtration Accuracy: 50-3000 μm
Working Pressure: 4-16 bar or customized
Working Temperature: 10-80°C
Housing Material: SS or customized
Backwash Time: 15s (adjustable)
OVERVIEW
SPECIFICATIONS
Flow Rate: 20-2500 m³/h
Filtration Accuracy: 50-3000 μm
Working Pressure: 4-16 bar or customized
Core Features
Large single-unit capacity, small footprint, low investment
Activates suction cleaning at set differential pressure to restore filtration capacity
Concentrate discharge time: 1-15s (adjustable), discharge can be centrally treated
No disposable consumables inside equipment, low operating costs
Soft-material suction nozzle ensures wear-free, long-term stable operation
Applications
Drinking Water
Heating System Water
Building Circulating Water
Industrial Circulating Water
Golf Course Water
Mining Water
