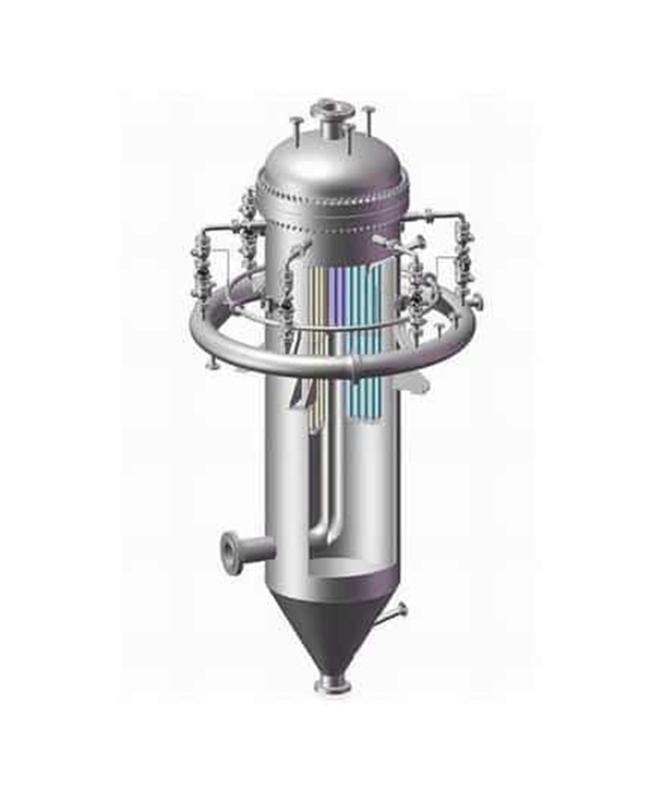

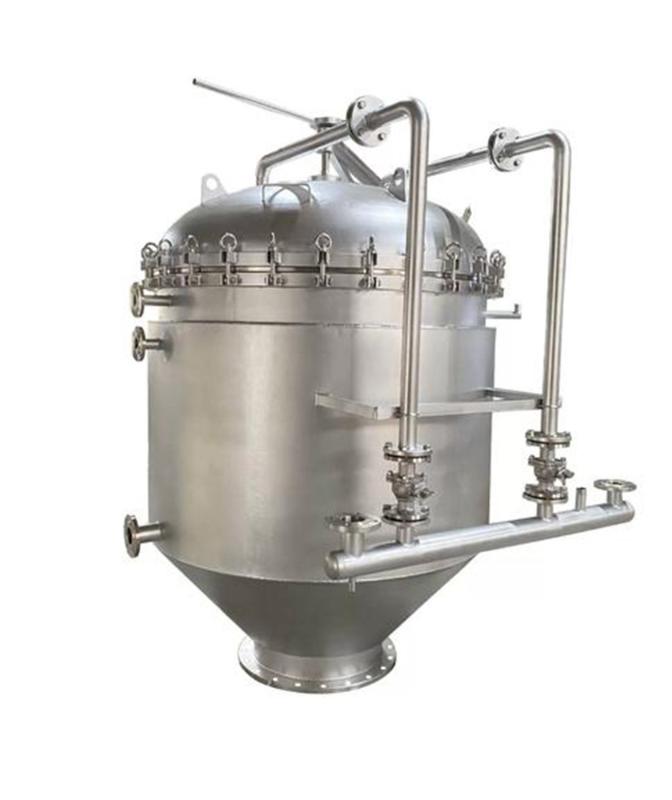

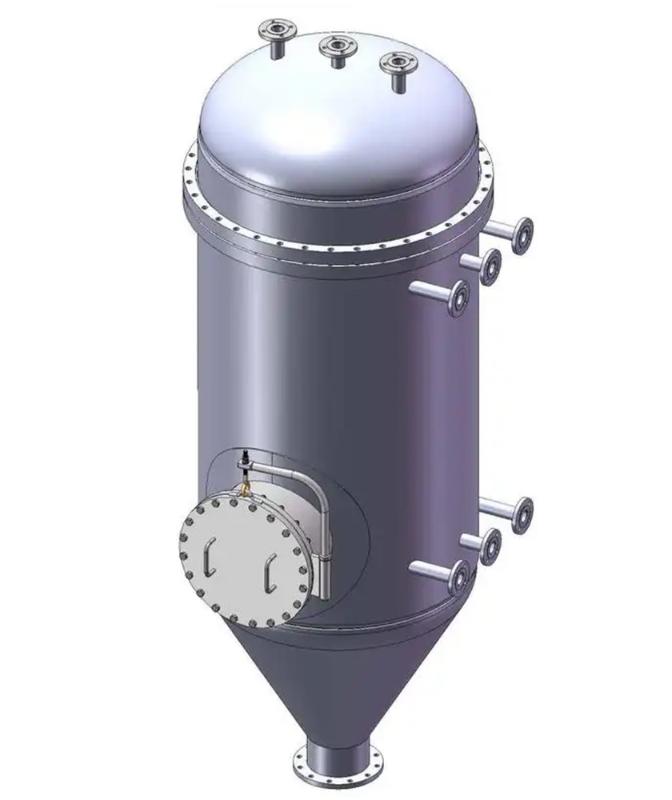

CANDLE FILTER
QGZF
The QGZF series are precision filters for gas-solid separation. The filter elements are sintered from metal or ceramic, suitable for high-temperature gas filtration. They feature high filtration accuracy, low pressure drop, and can be regenerated by backflush to restore filtration capacity.
Design Pressure: PN/85 bar
Removes particles larger than 1 μm
Purified gas concentration below 1 mg/Nm³
Separation efficiency up to 99.9%
Withstands high temperatures of 300-800°C
Online backflush capability
OVERVIEW
SPECIFICATIONS
Removes particles larger than 1 μm
Purified gas concentration below 1 mg/Nm³
Withstands temperatures of 300–800 °C
Core Features
Compliant with GB/ASME/GOST standards
Capable of high-temperature gas-solid separation
Low-resistance filtration
High filtration accuracy up to 1 μm
Online backflush function for continuous operation
Applications
Powder silo vent filtration
Coal gasification process gas filtration
High-temperature flue gas dedusting
Waste incineration flue gas dedusting
Pyrolysis process emission dedusting
