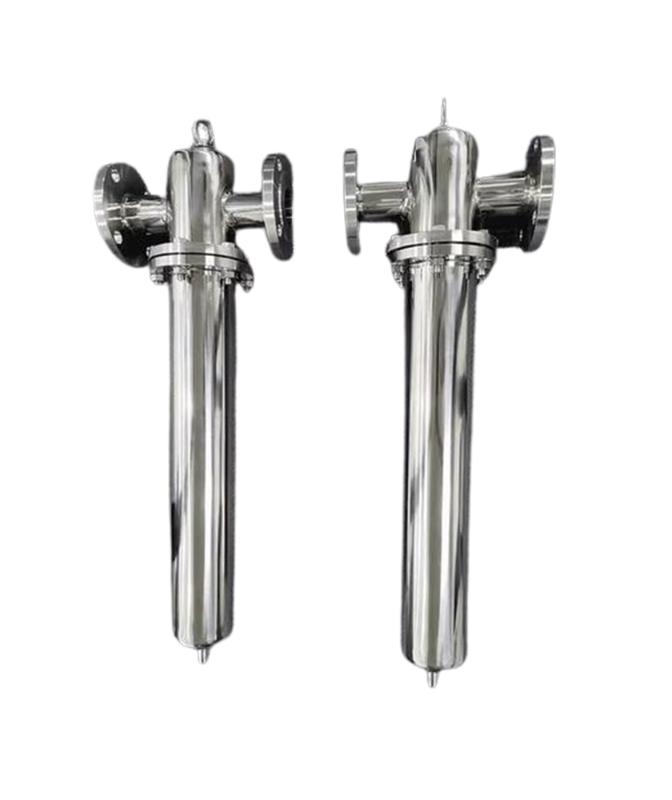

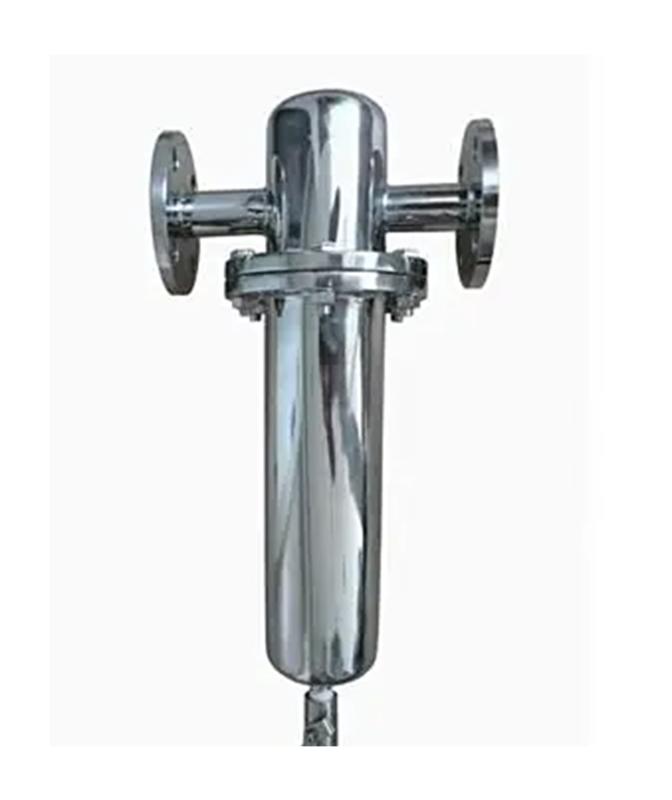

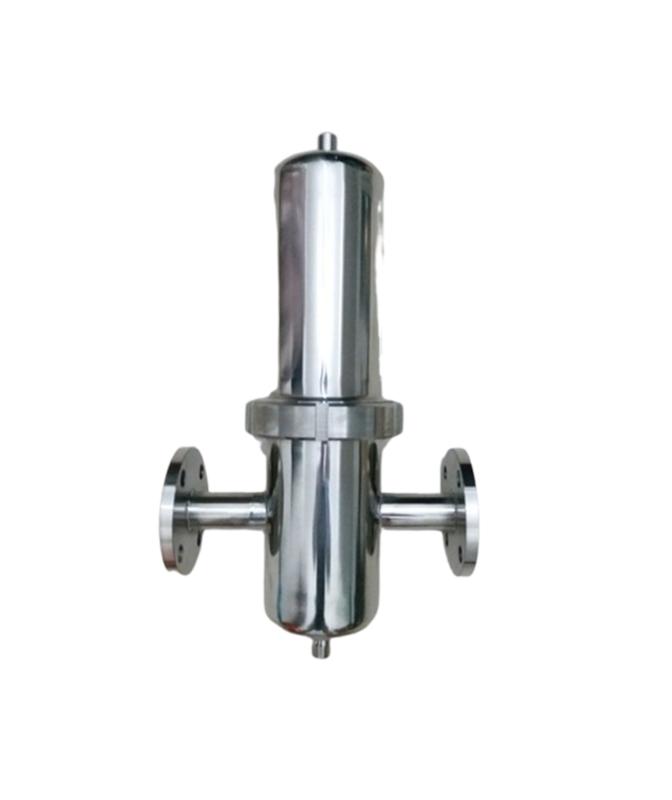

CANDLE FILTER
ZQZF
The ZQZF series are specialized steam filters. The filter elements are sintered from metal, offering high filtration accuracy to effectively protect downstream process equipment. They feature a low pressure drop, minimizing impact on system pipeline transport pressure.
Design Pressure: 16 bar (or customized)
Design Temperature: 160°C (or customized)
Filtration Rating: 1–10 μm
Material: SS304 or customized
Cartridge Interface: 226 / 222 / M20 / M30
Mirror Polish: Ra ≤ 0.4 μm (or customized)
OVERVIEW
SPECIFICATIONS
Flow Rate: 40-1000 m³/h
Filtration Rating: 1-10 μm
Design Pressure: 16 bar
Core Features
Compliant with GB/ASME/GOST standards
High filtration accuracy, excellent contaminant discharge capability
Suitable for filtering steam, air, process gases, and other gases
Compatible with 226/222 cartridges, or customizable per requirements
Low pressure loss during gas filtration
Simple structure, compact size, lightweight, easy to install and operate
High temperature and corrosion resistance, long service life
Applications
Steam Filtration
Compressed Air Filtration
Process Gas Filtration
