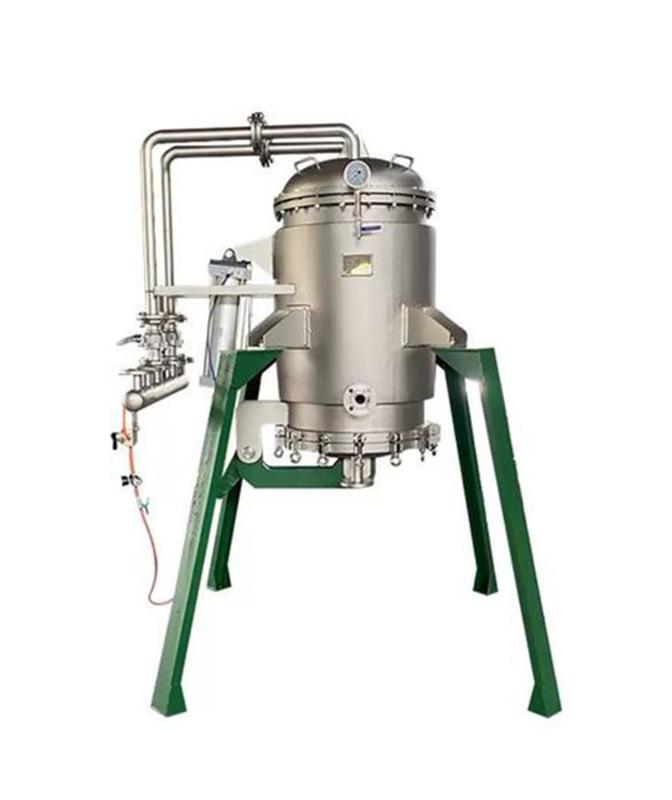

CANDLE FILTER
WCZF
The WCZF series are residual-liquid-free discharge filters. This model is an upgraded version of the PGZF series, retaining all its functions while adding the capability to press-dry or suction-dry the liquid inside the vessel, enabling automated residue discharge.
Flow Rate: 10-660 m³/h
Design Pressure: 16 bar (or customized)
Design Temperature: 180°C (or customized)
Filtration Rating: 0.1-100 μm
Housing Material: SS304 or customized
Cartridge Interface: M20/M30 or customized
OVERVIEW
SPECIFICATIONS
Flow Rate: 10-660 m³/h
Filtration Rating: 0.1-100 μm
Residual-Liquid-Free Discharge, Automated Dry Residue Discharge
Core Features
Compliant with GB/ASME/GOST standards
Meets GMP/FDA certification requirements
Surface treatment: Matte, mirror polish, food/pharmaceutical grade available
High filtration accuracy up to 0.1 μm
Filter elements with grouped control, online backwash/backflush for membrane recovery, ensuring long-term stable operation
High automation level
Automated dry residue discharge
Applications
Recovery of metal catalysts such as palladium carbon
DMC filtration and recovery
Filtration and recovery of high-value solid materials
Gold ore sand filtration and recovery
