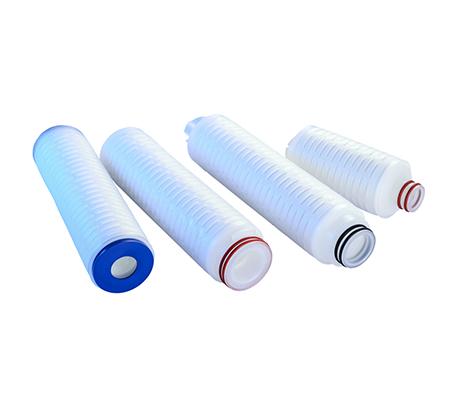

PTFE pleated filter cartridge

The PTFE pleated filter cartridge series is manufactured using advanced biaxially oriented PTFE membrane technology. It offers broad chemical compatibility, biocompatibility, and unique hydrophobic and hydrophilic properties. PTFE hydrophobic cartridges feature strong hydrophobicity and high retention efficiency, achieving sterile gas filtration. They provide air permeability without water permeability, high airflow capacity, and resistance to high temperatures, strong acids, and alkalis.Hydrophilic PTFE filter cartridges achieve sterile liquid filtration with stable hydrophilic properties and high retention rates. Beyond excellent chemical compatibility and corrosion resistance, their hydrophilic media eliminates the need for pre-wetting during filtration of aqueous solutions, significantly reducing operational time costs. Suitable for filtering highly corrosive and strongly oxidizing liquids, as well as gas filtration.

Common market precision grades: 0.01μm, 0.1μm, 0.22μm, 0.45μm, 1μm, 5μm, 10μm

INQUIRE NOW

NEXT PRODUCT

OVERVIEW

SPECIFICATIONS

Core Features

1. High sterilization safety. Maintains 100% filtration efficiency in gas filtration even under humid conditions. Filtration precision: 0.2μm for liquids, <0.01μm for gases, and <0.03μm for dual-layer configurations. Strong hydrophobic properties enable water intrusion testing, eliminating residue issues associated with solvent wetting integrity tests.

2. Available in single-layer or double-layer configurations. Features large filtration area, low pressure drop, high flow rate, and extended service life.

3. Excellent chemical compatibility, resistant to acids, alkalis, and organic solvents.

4. Individually numbered filter elements with traceable batch production records. Each element undergoes 100% integrity testing before shipment, ensuring reliable quality and safety.

Applications

Chemical Industry: Filtration of organic solvents, various alcohols, chemical reagents, etc.
Gas Filtration: Sterile filtration of compressed air, nitrogen, carbon dioxide, etc.; filtration for sterile tank breathers, air-fed fermenters, etc.
Pharmaceutical Industry: Sterile filtration of active pharmaceutical ingredients (APIs), pharmaceutical solutions, etc.
Food Industry: Filtration of spirits, beverages, wine, fruit wines, etc.

Specifications	Inner Diameter	Outer Diameter	Length	Water Treatment Capacity	Filter Precision	Packaging
2.5 inches	32mm	68mm	63.5mm	0.125 t/h	0.01-10μm	200 pieces/box
5-inch	32mm	68mm	127mm	0.25 t/h	0.01-10μm	100 cartridges/box
10 inches	32mm	68mm	254mm	0.5 t/h	0.01-10μm	50 pieces/box
20 inches	32mm	68mm	508mm	1 t/h	0.01-10μm	25 pieces/box
30 inches	32mm	68mm	762mm	1.5 t/h	0.01-10μm	25 pieces/box
40 inches	32mm	68mm	1016mm	2 t/h	0.01-10μm	25 pieces/box
