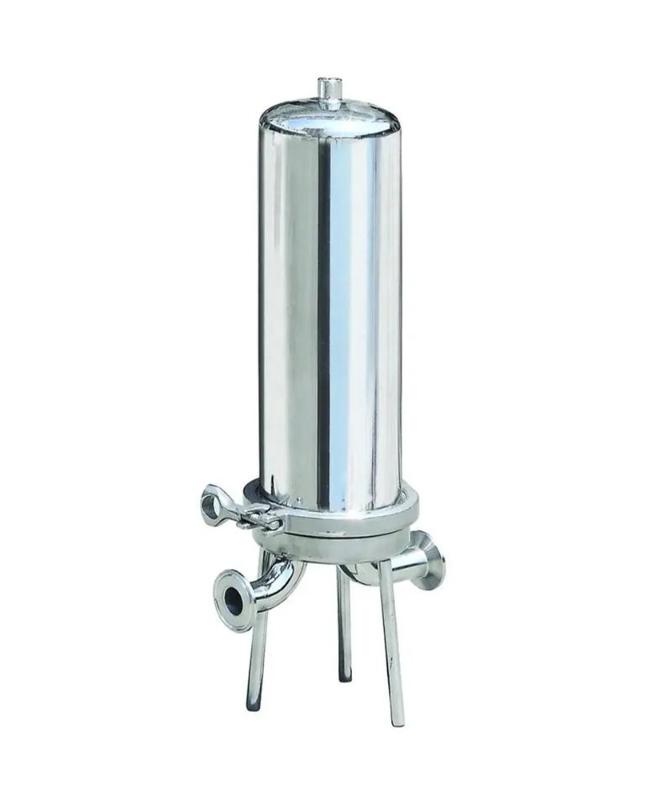

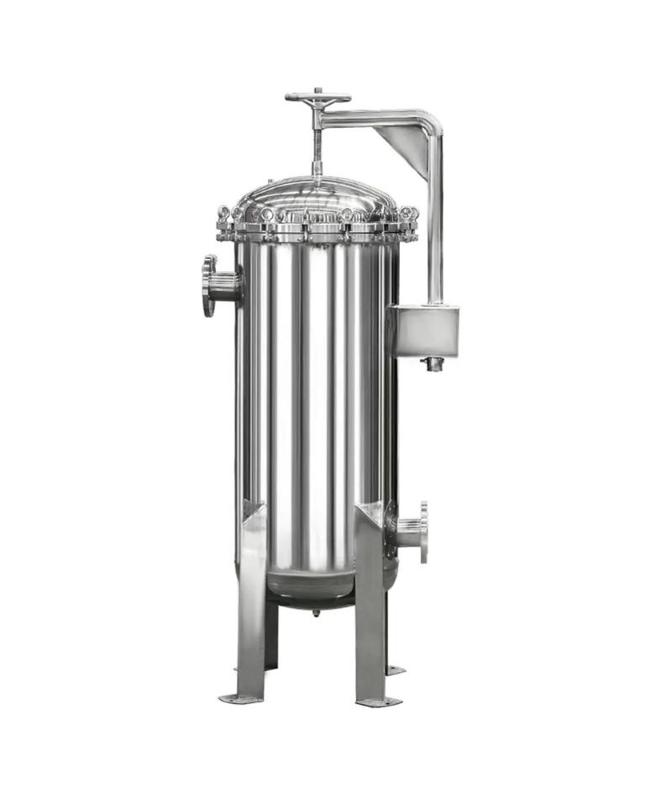

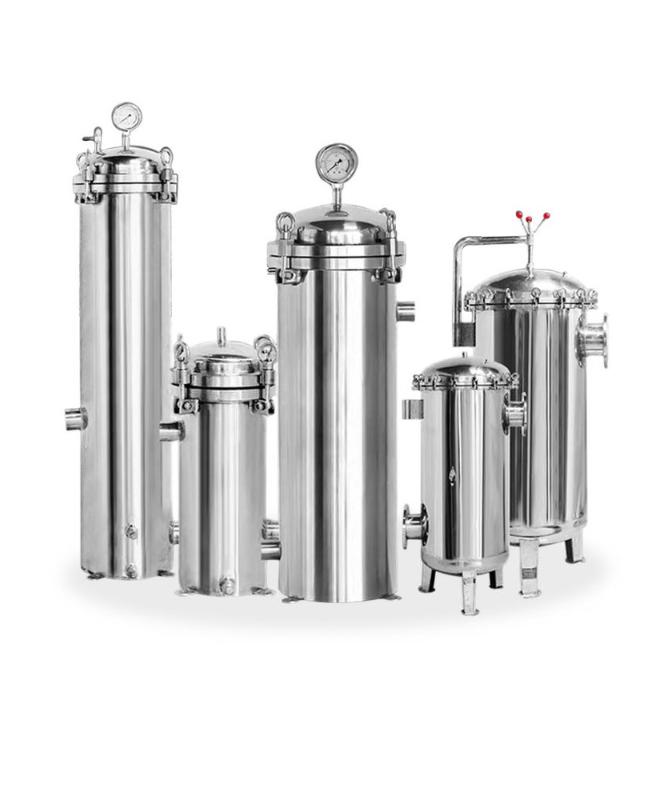

SECURITY FILTER
SYBF
SYBF Series: Food/pharmaceutical grade security filters. GMP/FDA compliant. High-precision filtration removes particles, solids, bacteria; replaces pasteurization. Ideal pre-filter for RO/UF systems. High capacity for diverse industrial applications.
Design Pressure: 6-10 bar
Design Temperature: 20-80°C
Filtration Rating: 0.1-100 μm
Housing Material: SS or Customized
Cartridge Diameter: Ø68 mm
Cartridge Length: 10/20/30/40 inch
OVERVIEW
SPECIFICATIONS
High filtration accuracy:0.1-100 μm
Large flow capacity:1.5-195 m³/h per unit, or customized
Resistant to acids, alkalis and chemical solvents
Core Features
Design compliant with GB/ASME/GOST standards
Meets GMP/FDA certification requirements
High filtration accuracy with uniform pore size distribution
Low pressure drop, high flow rate, excellent dirt holding capacity, long service life
High-purity filter media, non-contaminating to process fluids
Competitive pricing and low operating costs
Applications
Active Pharmaceutical Ingredients (APIs)
Water for Injection (WFI)
Beverages
Bottled Water
Drinking Water
Beer
Wine
