SELF-CLEANING FILTER
YGDF

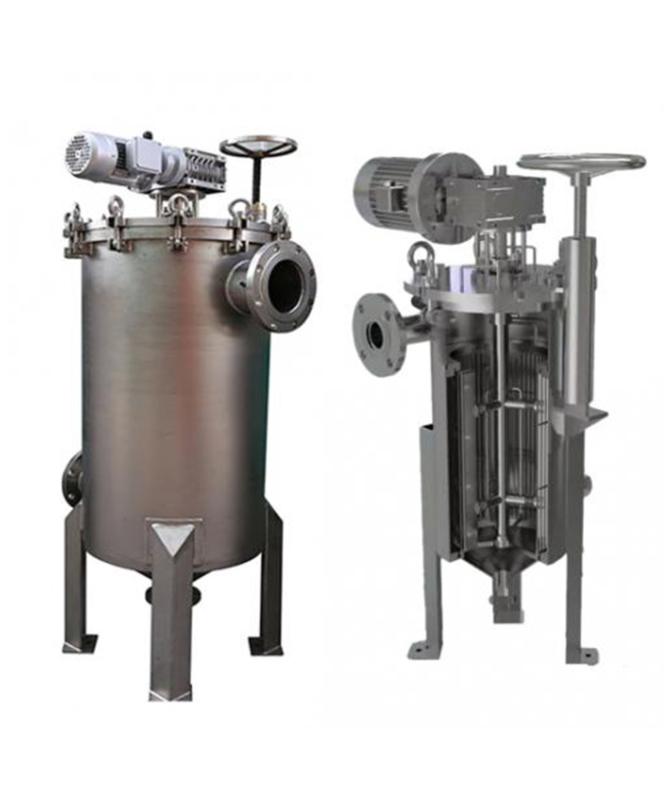

The YGDF series are scraper-type self-cleaning filters, featuring compact size and high flow capacity. They effectively intercept large particles, with an electric scraper that cleans the filter surface on a timed or demand basis to enhance filtration efficiency. No disposable consumables are generated, resulting in low operating costs.
Flow Rate: 20-2500 m³/h
Filtration Accuracy: 50-3000 μm
Working Pressure: 4-16 bar or customized
Working Temperature: 10-80°C
Housing Material: SS or customized
Backwash Time: 15s (adjustable)
OVERVIEW
SPECIFICATIONS
Flow Rate: 20-2500 m³/h
Filtration Accuracy: 50-3000 μm
Working Pressure: 4-16 bar or customized
Core Features
Large single-unit capacity, small footprint, low investment
Activates scraper cleaning at set differential pressure to restore filtration capacity
Concentrate discharge time: 1-15s (adjustable), discharge can be centrally treated
No disposable consumables inside equipment, low operating costs
Soft-material scraper minimizes wear, ensuring long-term stable operation
Applications
Drinking Water
Heating System Water
Building Circulating Water
Industrial Circulating Water
Golf Course Water
Mining Water
