Industrial Security Filter: Types, Applications, and How It Works

An industrial security filter is a fine liquid filtration device used to remove residual suspended particles before the fluid reaches sensitive downstream equipment or a further treatment stage. It provides an additional filtration barrier in industrial water treatment, process filtration, RO/UF pretreatment, and other applications where stable downstream operation matters.

What Is an Industrial Security Filter?

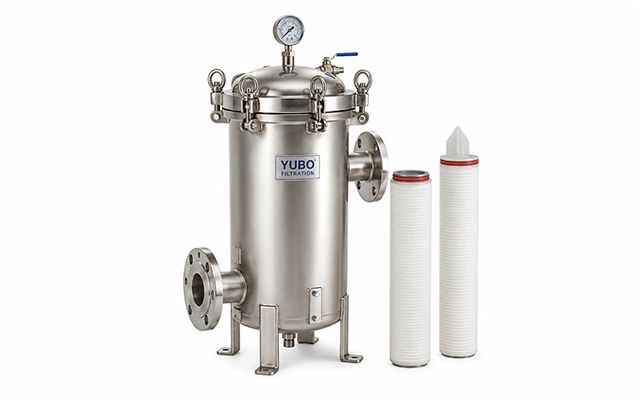

An industrial security filter is typically installed as a fine or final protective filtration stage. Fluid passes through a filter element inside a pressure-resistant housing, while suspended particles are retained by the filtration media.

Its purpose is not necessarily to replace every upstream filtration step. In many systems, larger contaminants are removed first by other filtration equipment. The security filter then provides an additional barrier for finer residual particles.

This makes it particularly useful when downstream equipment, membranes, or product quality require more consistent fluid cleanliness.

How Does a Security Filter Work?

The operating principle is straightforward:

1. Fluid enters the housing through the inlet connection.

2. The fluid passes through the filter element, where particles are retained.

3. Filtered liquid leaves the housing through the outlet.

4. The element is inspected, cleaned, or replaced according to the actual operating condition.

The housing provides the pressure-containing structure, while the filter element performs the actual filtration. Element material, filtration rating, flow requirement, and fluid characteristics therefore need to be considered together.

Where Does a Security Filter Fit in a Filtration System?

A common arrangement is:

Primary Filtration → Security Filter → Sensitive Equipment or Further Treatment

For example, in a water treatment system, upstream filtration may remove a larger particle load before the security filter provides an additional fine-filtration stage. In membrane systems, this protective stage can help reduce the particulate load reaching RO or UF equipment.

The exact position depends on the process and the quality of the incoming fluid rather than on one fixed installation rule.

What Does a Security Filter Protect?

Security filters are commonly used to provide additional protection for:

The actual filtration result depends on the selected element, process conditions, and required filtration performance.

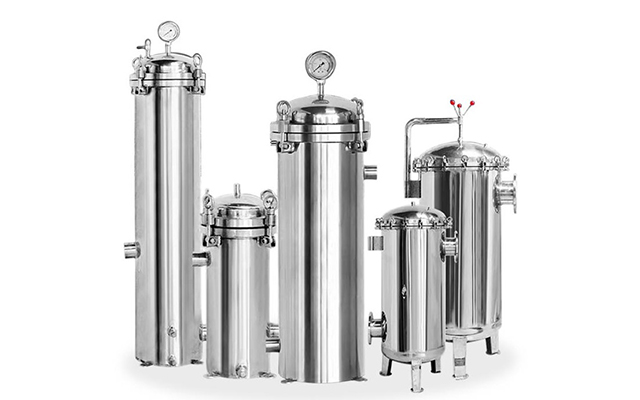

Types of Industrial Security Filters

YUBO's current Security Filter product range includes DLBF, SYBF, and SSBF series, covering different filtration and application requirements.

1. DLBF Series

The DLBF Series is a high-flow security filter using deep-layer polypropylene or glass-fiber filter media. Its graded pore structure is designed for fine filtration with high dirt-holding capacity and large flow capacity. YUBO lists applications including wastewater treatment, cooling-water reuse, seawater desalination, chemical solution preparation, beverages, and high-purity water.

2. SYBF Series

The SYBF Series is positioned as a food/pharmaceutical-grade security filter. YUBO specifies applications including APIs, WFI, beverages, bottled water, drinking water, beer, and wine, with GMP/FDA-related design requirements stated on the product page.

3. SSBF Series

The SSBF Series uses stainless-steel housings and is designed for fine filtration in demanding industrial applications. YUBO lists applications such as seawater desalination, drinking water, industrial condensate reuse, chemical solution preparation, beverages, bottled water, and semiconductor high-purity water.

Industrial Security Filter Applications

Security filters are used across a range of industrial processes where fine particulate control and downstream protection are important.

Typical applications include:

• Water Treatment: fine filtration and protection of downstream treatment equipment.

• Seawater Desalination: additional particle protection before membrane treatment.

• Chemical Processing: filtration of compatible process liquids and chemical solutions.

• Power Generation: filtration for selected water and auxiliary process systems.

• Food & Beverage: filtration where product cleanliness and hygienic processing are important.

• High-Purity Water: additional filtration before sensitive downstream processes.

Security Filters for RO and UF Systems

RO and UF systems are particularly sensitive to particulate contamination. A security filter can be used as an additional protective filtration stage before membrane equipment.

How to Select an Industrial Security Filter

Selection should start with the actual process rather than the filter model alone.

Key factors include:

• Fluid characteristics

• Required filtration rating

• Flow requirement

• Operating pressure and temperature

• Housing material

• Filter element material

• Connection requirements

• Maintenance conditions

For customized projects, these factors should be reviewed together before the final configuration is confirmed.

Why Choose YUBO Security Filters?

YUBO Filtration manufactures security filters and other industrial filtration equipment. Our engineering validation system includes structural integrity analysis, pressure testing, flow distribution testing, material qualification, durability evaluation, and safety validation. The integrated management system is certified to ISO 9001, ISO 14001, and ISO 45001.

FAQ

1. What is an industrial security filter?

It is a fine filtration device used to remove residual particles and protect downstream equipment or treatment processes.

2. Is a security filter the same as a cartridge filter housing?

Not necessarily. Security filtration describes the filtration role, while a cartridge filter housing is the vessel that holds cartridge elements.

3. Can a security filter be used before RO?

Yes. It can provide an additional protective filtration stage before RO when required.

4. What security filters does YUBO manufacture?

YUBO currently offers DLBF, SYBF, and SSBF series security filters.
